EasyVBAI

Product Objectives

Vision Inspection made easy.

EasyVBAI is a Add-On for NI VBAI which offers simple, effective User Interface (UI) for image processing scripts developed in VBAI. As the name suggests, it allows easy to configure UI so that the system developer can focus on VBAI script rather than the UI components.

It also allows for easy to maintain system where image processing script is decoupled from the EasyVBAI UI. Also, user gets to decide which of the VBAI test step results to use for overall test result to show on the UI.

EasyVBAI from ARAV Systems is an Add-On for NI VBAI which offers simple, effective, easy to configure User Interface (UI) for image processing scripts developed in NI VBAI, so that the developer can focus on VBAI scripting rather than the UI components.

It also simplifies the maintainability of system by decoupling image processing script from the EasyVBAI UI. Users also get to decide which of the VBAI test step results to include for displaying the overall test result on the UI.

Features

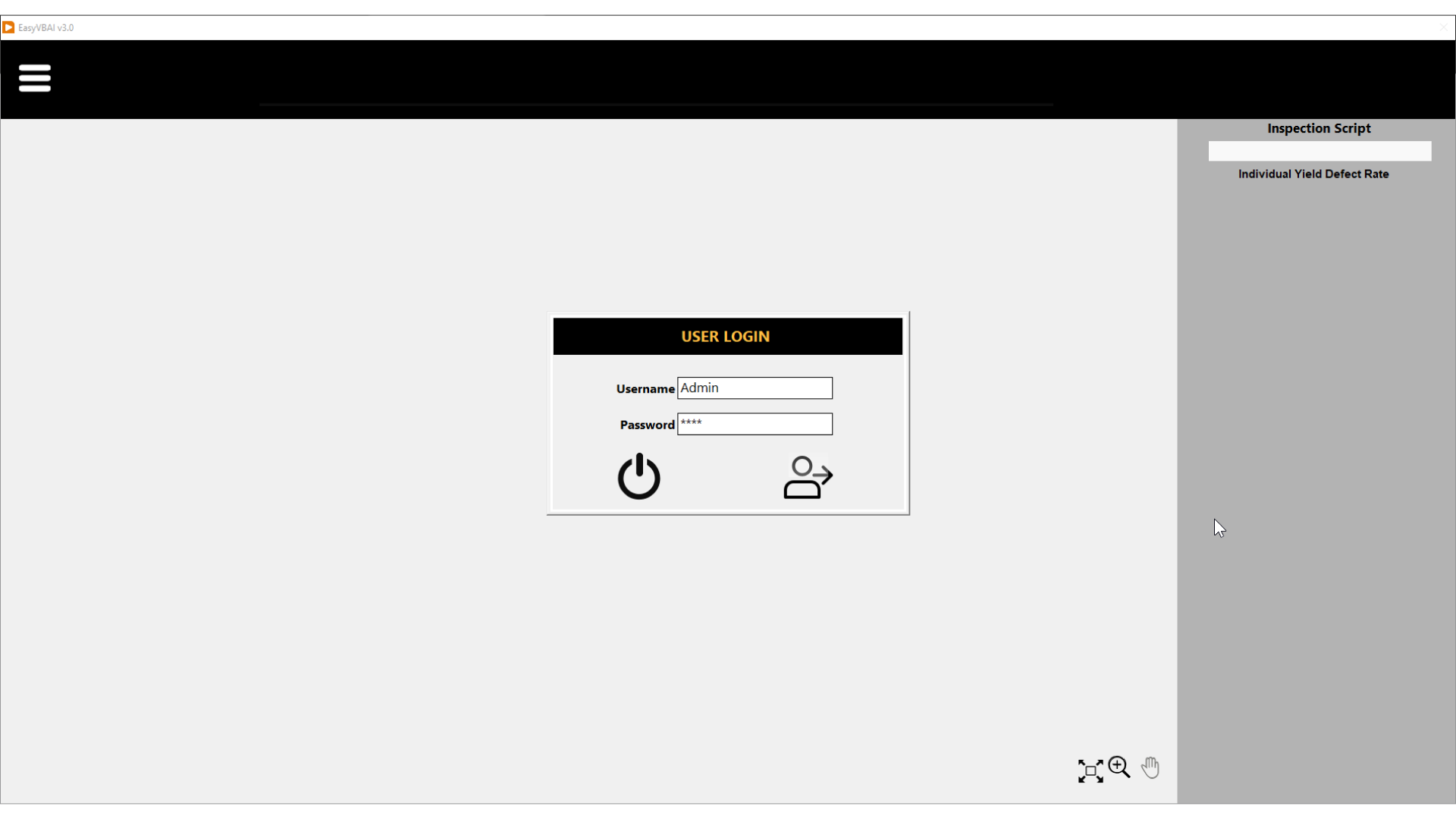

Simple and intuitive user interface.
Customizable components on user interface.

Scales/fits the full screen space automagically.
Option for adding User Manual/Help Documentation for end user.

Easy Installation and
Configuration Setup

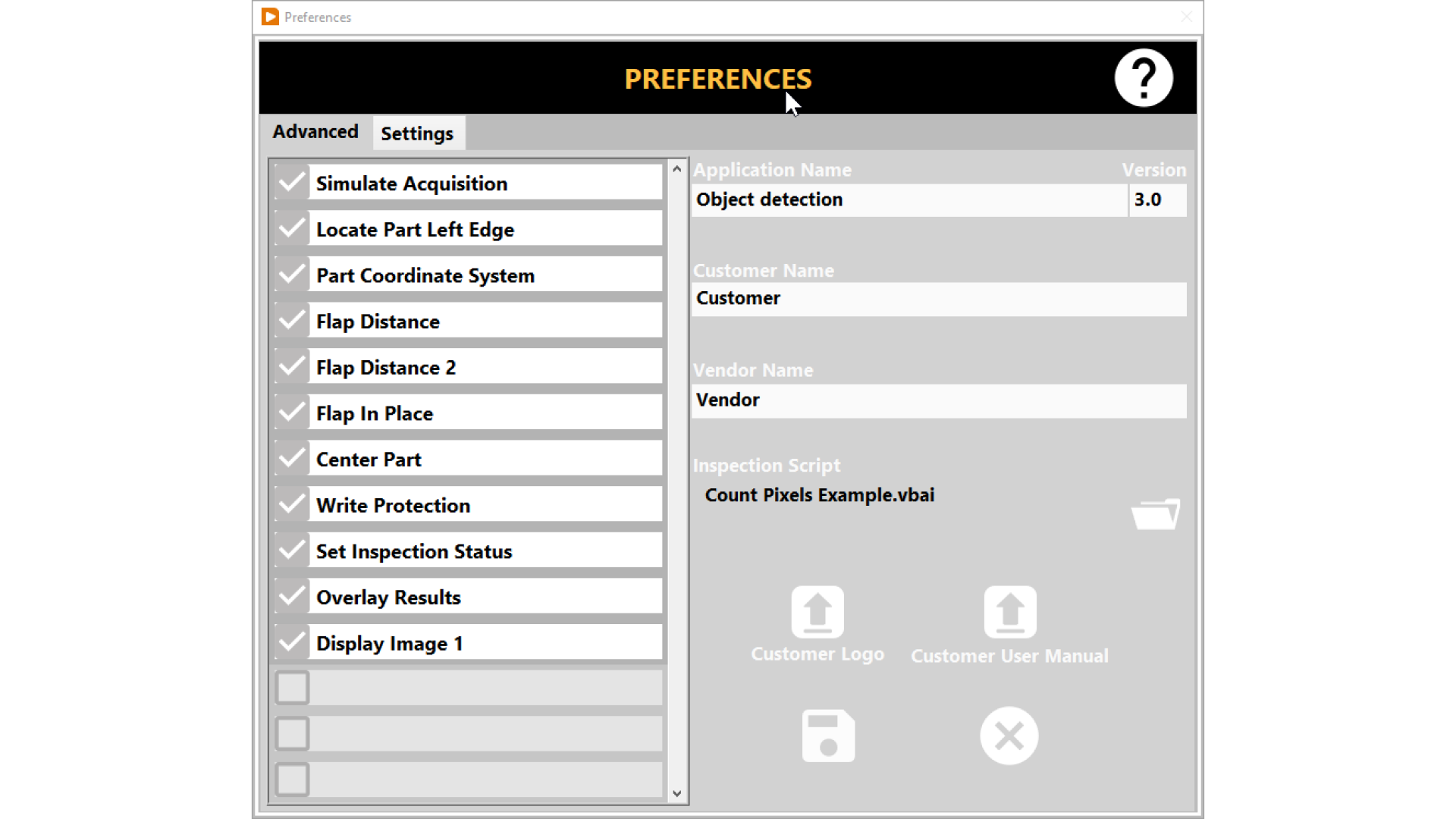

Comes with windows installer for easy installation of the software and its dependencies. Create a unique configuration for each unique project or customer by just updating the preferences list. Reuse it when you need it.

Choose Your Steps
For Final Result

Choose which steps you want to consider for your final result. Want to Exclude or Include an existing step from the list after deployment, just change the step list not the VBAI script.
